Descrição do Produto: Nilight 90013L 12PCS Round Toggle LED Switch 12V Car Truck Rocker On-Off Control
O Nilight 90013L é um conjunto de 12 interruptores de LED redondos projetados para oferecer controle eficiente e seguro em circuitos elétricos de 12V. Com um design perfeito, esses interruptores SPST (Single Pole Single Throw) permitem conectar e desconectar circuitos elétricos de 20A com facilidade. Cada interruptor possui um design de 2 polos (On/Off) e um terceiro polo com LED que deve ser conectado à terra, garantindo que as lâmpadas fluorescentes se acendam quando o interruptor estiver ativado.
A segurança é uma prioridade com o Nilight 90013L. Os contatos são feitos de prata com revestimento de cobre, proporcionando excelente condutividade elétrica. Além disso, o material de alta qualidade e a carcaça retardante de chama garantem um uso seguro e confiável, mesmo em condições adversas.

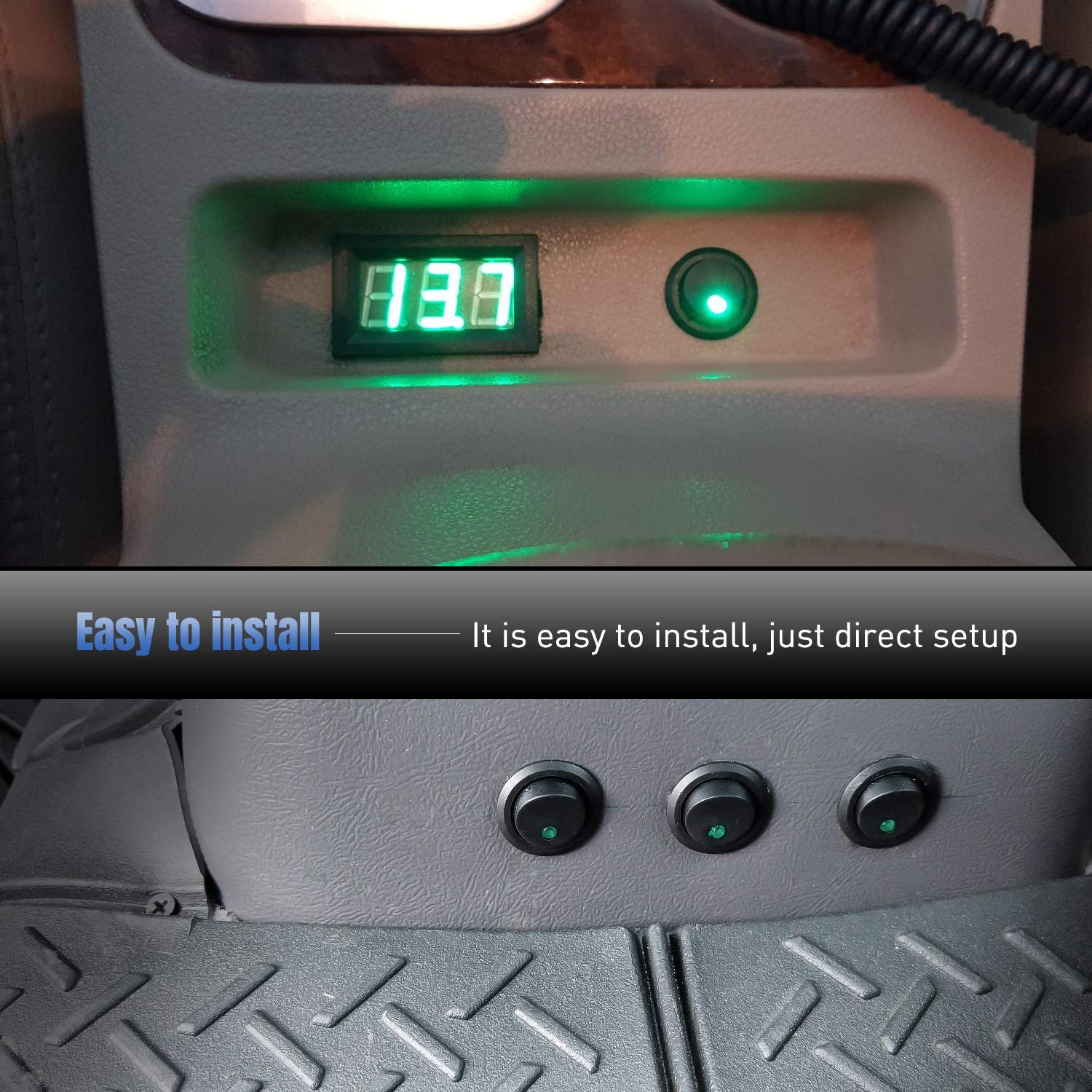

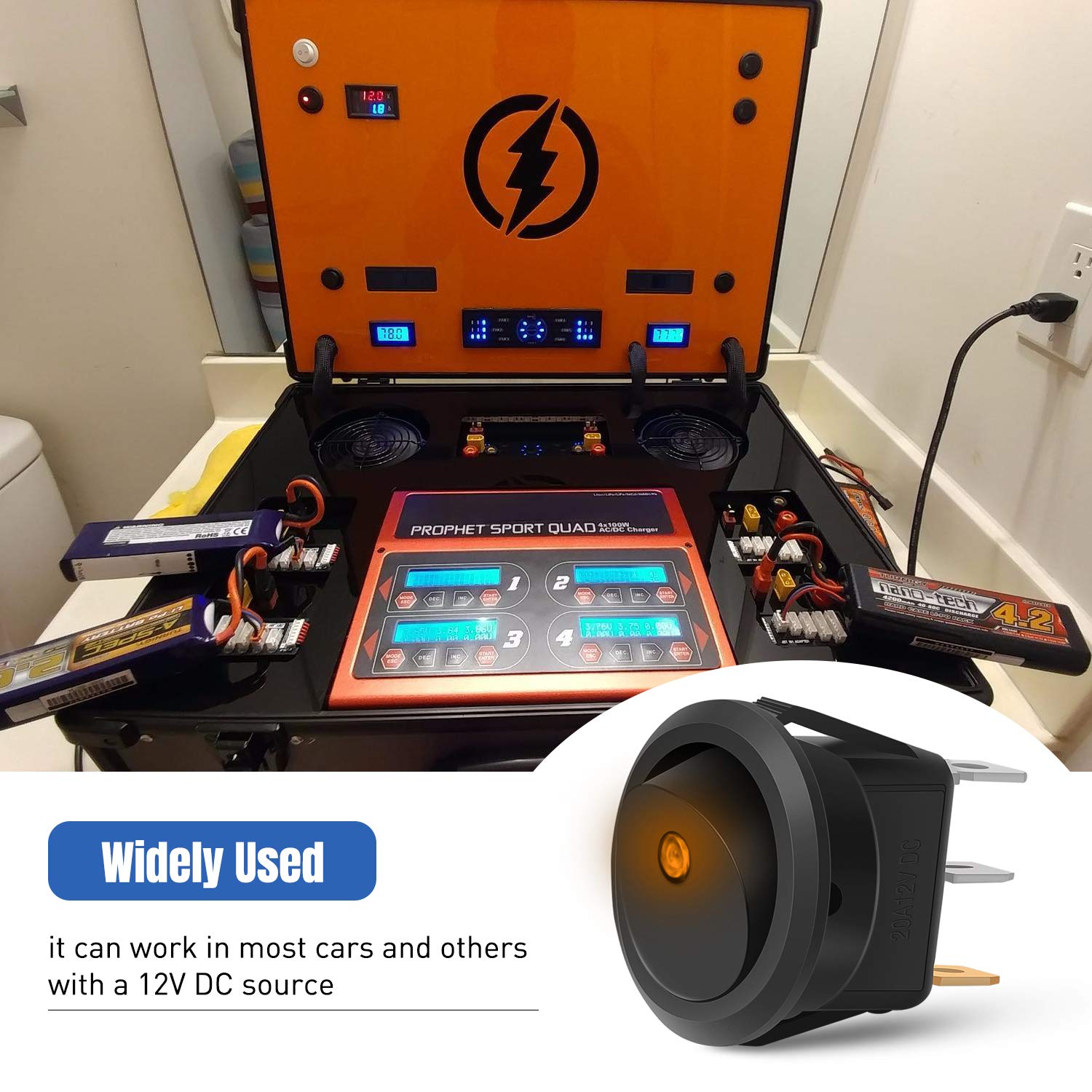

A instalação deste interruptor redondo é simples e direta, sem necessidade de trabalho adicional. O design inclui um slot em forma de chave que evita rotações indesejadas, tornando o processo de instalação ainda mais prático. Este interruptor LED rocker é amplamente utilizado em carros e outros veículos que operam com uma fonte de 12V DC, tornando-o uma escolha versátil para diversas aplicações.

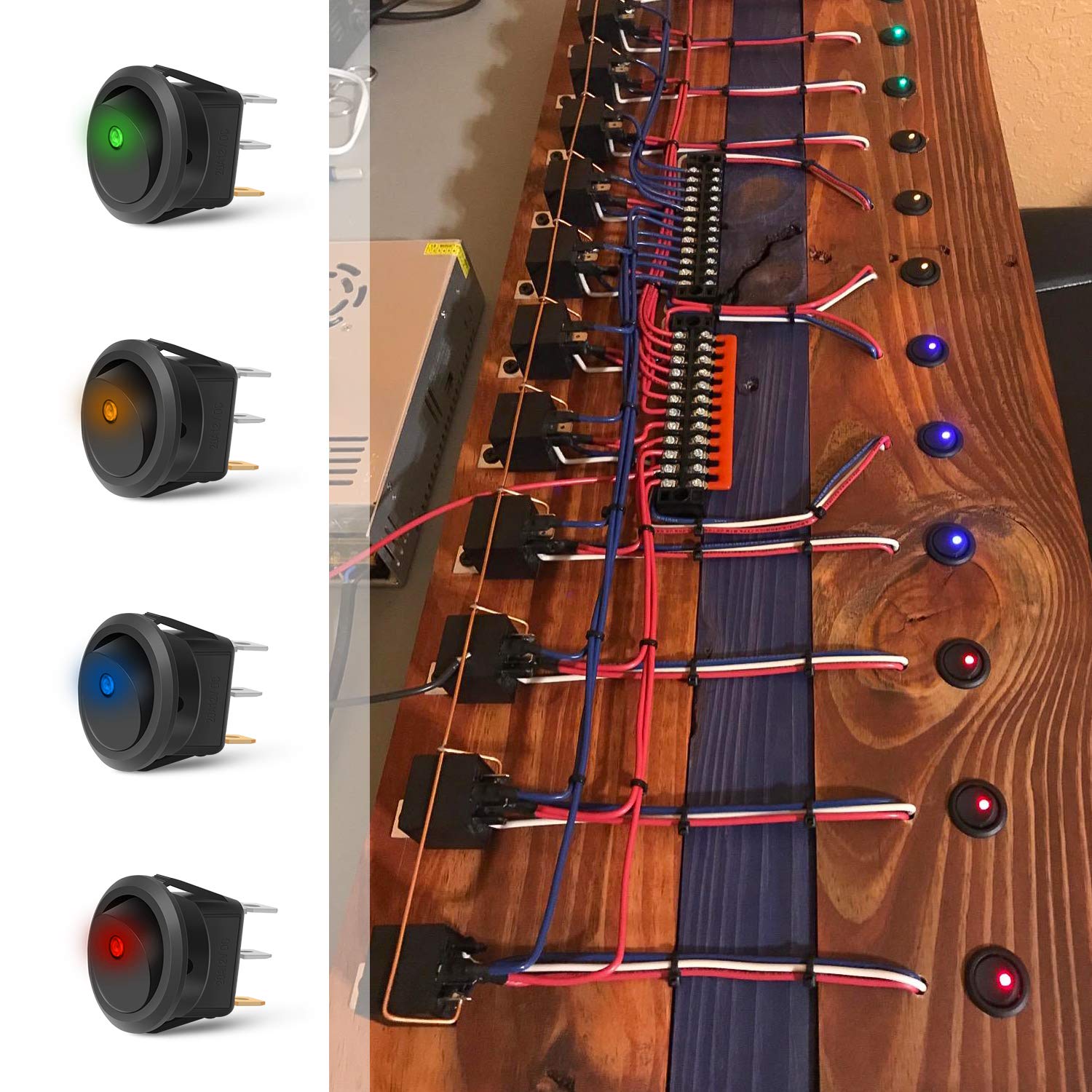

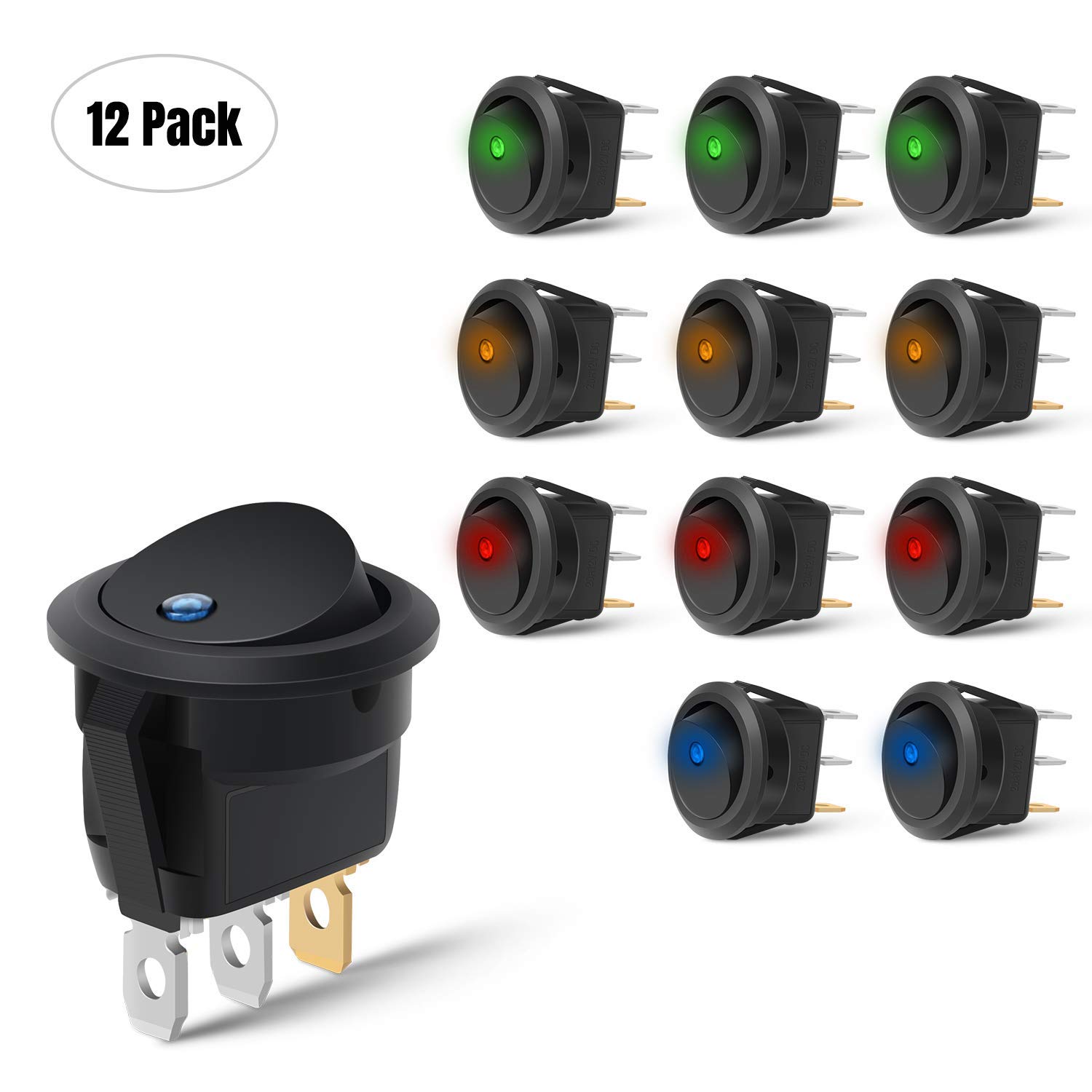

O pacote inclui 12 interruptores LED redondos, distribuídos em quatro cores: 3 interruptores com LED vermelho, 3 com LED azul, 3 com LED verde e 3 com LED amarelo. Essa variedade de cores permite personalizar a iluminação e a funcionalidade de acordo com as preferências do usuário.
- Instruções de Uso:
Para utilizar o Nilight 90013L, comece desconectando a fonte de energia do circuito onde o interruptor será instalado. Em seguida, conecte os fios do circuito aos terminais do interruptor, respeitando a polaridade. O terminal do LED deve ser conectado à terra para que a iluminação funcione corretamente. Após a instalação, reconecte a fonte de energia e teste o interruptor para garantir que ele funcione conforme esperado.
Características do Produto:
– Tipo: Interruptor rocker LED redondo
– Tensão: 12V DC
– Corrente: 20A
– Design: SPST (On/Off) com 2 polos e 1 LED
– Material: Contatos de prata com revestimento de cobre e carcaça retardante de chama
– Cores Disponíveis: Vermelho, Azul, Verde, Amarelo
– Quantidade: 12 interruptores por pacote
– Instalação: Direta, com slot para evitar rotação indesejada
Perguntas Frequentes (FAQ):
Pergunta: Qual é a tensão máxima que os interruptores podem suportar?
Resposta: Os interruptores Nilight 90013L são projetados para operar com uma tensão máxima de 12V DC e uma corrente de até 20A.
Pergunta: Posso usar esses interruptores em veículos que não sejam automóveis?
Resposta: Sim, os interruptores são versáteis e podem ser utilizados em qualquer veículo ou equipamento que opere com uma fonte de 12V DC.
Pergunta: Como posso garantir que a instalação seja segura?
Resposta: Certifique-se de desconectar a fonte de energia antes de instalar os interruptores e siga as instruções de conexão corretamente, respeitando a polaridade.
Pergunta: Os LEDs acendem automaticamente quando o interruptor é ligado?
Resposta: Sim, os LEDs acenderão automaticamente quando o interruptor estiver na posição “On”, desde que o terminal do LED esteja conectado à terra.
Pergunta: O que fazer se o interruptor não funcionar após a instalação?
Resposta: Verifique as conexões para garantir que estão firmes e corretas. Além disso, confirme se a fonte de energia está funcionando e se a tensão está dentro dos limites especificados.
True Rating –
I think I’ve used one of these. Well worth the price. And they ride around in my truck just in case.
Anonymous –
Bench tested all 12 and all switches and their LEDs work. Contact pins are 3/16” spades. Gold is ground(-12V), and I’m not sure if the other two actually matter, it works either way. Having opened it up, i can tell you the center pin is (always) connected to the internal LED’s positive side and the internal LED’s negative side is connected/disconnected to/from the ground pin when switch is turned on/off. Whereas pin 3 is connected to nothing when the switch is off and then connects to center pin when switch is on.

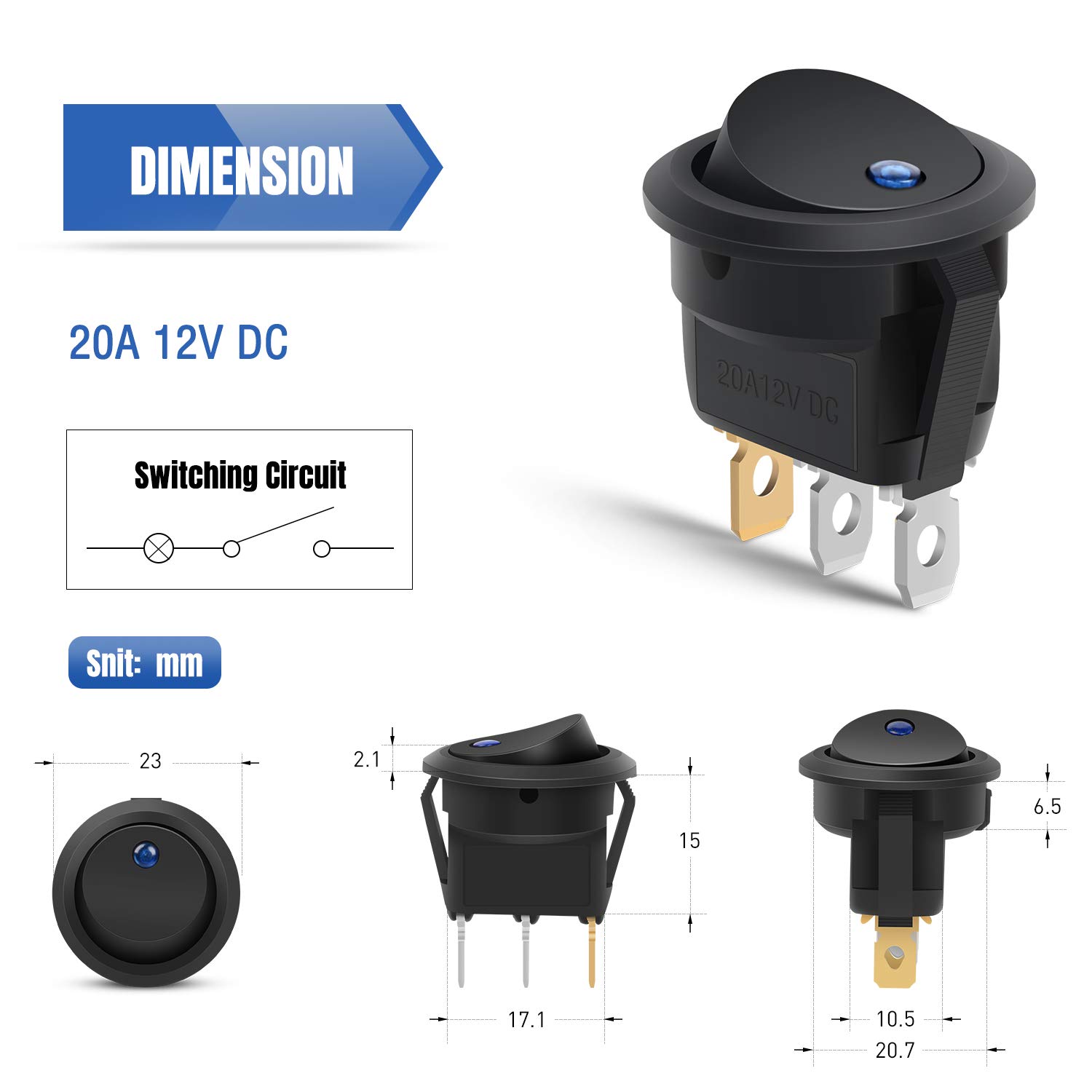

The bezel is pretty narrow so the mounting hole needs to be accurately sized. Switch diameter for mounting hole is .778” and the outside bezel diameter is .905”.
The LEDs are backwards IMO, but the caps can be switched around, though the LED bleeds through between the cap and the housing and is more noticeable when reversed. To switch the cap around: hold with cap facing up because there are a couple parts inside that come loose, pry the cap off at swivel pins with small screwdriver, make sure internal parts stay in place (rocker contact plate down in housing and a spring loaded contact pin in rocker head), remove cap from the rocker head, reverse it, reassemble ensuring those loose parts are set properly.
Have not actually installed yet, but they seem like good switches. Annoying that the LED is backwards.
Muhammad Aman –
buen producto
Michael –
Awesome switches, well worth the money.
bullit-hed james –
It didn’t work for me.
big daddy –
The ease of instalation and the price is great. Thanks for the great product.
Anthony Corveddu –
I mounted this switch to the inside of a hatch in my duck boat. Installation was a breeze. One of the most impressive features is its weather resistance. I appreciate how it stands strong against moisture and unexpected splashes, which is a common occurrence when you’re dealing with wet gear and equipment. It still operates flawlessly even after a few unfortunate drenching episodes. The LED indicator light is bright and ensures you know where the switch is. A handy feature when you’re loading up the boat before dawn.
Craig Langkau –
Nilight Round Rocker Switches:
These worked well for my project and they seem to be well built.
The switch and nut threads mesh properly and tightens switch in place securely.
This is the first time I have used them so I can’t testify to there longevity.
R –
You can use the toggle only or with surround. I had enough space on my Ryobi snow shovel to use the surround. I know. I bypassed the safety. Well what was a danger was trying to work with the crummy safety trigger.. The click, click, click and still nothing is replaced with a on-off that works as it should.
I removed my trigger and safety slide then wrapped the handle with a 1 inch wide long length of stretch velcro. It provides no slip handle control while my tool is TURNED ON and in use.
Michael –
These switches are EXCELLENT! They are constructed with high-strength plastics and mechanically they are VERY solid. I don’t see how they could wear out even if used hundreds of times a day for decades.
There are three connectors on the back that are mounted solid – basically an extension of the whole switch. Nothing loose back there at all. One of the connectors is gold-ish in color and must be connected to ground so that the LED lights up when the switch is turned on.
For those interested in the tolerance specs, I decided to sacrifice one of these to see just how many volts the LED would tolerate and was pleasantly surprised with the results.
First of all, these are rated at 20 amps. HOWEVER, I would NOT run 20 amps through these at 12 volts. That’s 240 watts and if you can imagine the kind of heat you might get from 240 watt light bulb – you wouldn’t get that kind of heat concentrated in this switch, but from the looks of everything, I believe the switch would most definitely get warm if not hot at that kind of amperage. And of course, if the switch needs to sustain 20 amps at 12 volts, then you should be looking at a 25 amp rated switch AT A MINIMUM, so I would say it would be safe to use this switch at 10 amps but not more than 15 – TO BE SAFE!
SO, in my testing, using a bench power supply, the LED starts turning on at around 2.5 volts and starts getting close to max brightness at around 5 volts, though it does get about 15% brighter between 5 and 12 volts and it gets no brighter above 12 volts.
As I continued to increase the voltage, the LED didn’t flinch until I got past 45 volts, and at 50 volts, I fried the current limiting resistor attached to the LED. I had my bench power supply set to max amperage at 5 amps, yet this LED hung in there to where the resistor fried before the LED ever got hot enough to burn out. In the photo, the LED is sticking up but it was folded over, laying on its side next to the resistor. I moved it to get a good photo of the burnt resistor.
I would say that as long as you keep your wattage under 200 watts, you could use this switch at any voltage up to whatever voltage calculated out to be 200 watts (take the voltage times the current to calculate wattage).
After I fried it, I took some pictures so you can see what’s inside these things. Very basic … one LED and one current limiting resistor and a design that is top-notch with a very solid build. These things are NOT waterproof so I would not use them in any application where they might get wet, but they would be perfectly fine in any application where they are only exposed to open air (or in a vacuum I suppose). They have a solid click feel to them and they look very professional.
I haven’t measured around the inside of the ring yet, but if the hole was drilled to the right size and the material you’re mounting them to isn’t too thick, they will push in and click tight against the mounting plane and they will hold that position very well.
My only complaint about the company is that they included an insert with a QR code that said to scan it for a surprise, free gift. When I scanned it, it took me to the warranty registration page on their website. Once I registered it (and provided a screenshot of the order details along with a photo of the UPC code on the package, plus my name, email address, and phone number), I was not offered any gift at all.
I certainly understand that companies want feedback from their customers and warranty registration is a good thing for a manufacturer, but manipulating people into registering their product by promising them something and not delivering on that promise is just bad ethics. Don’t offer a gift if you don’t intend on giving one and let people decide for themselves if they want to register the product warranty or not without manipulating them with a lie in order to get them to do it.
Overall – for this price, these are amazing switches. I highly recommend them and will purchase these again if I ever need any.
