### Descrição do Produto

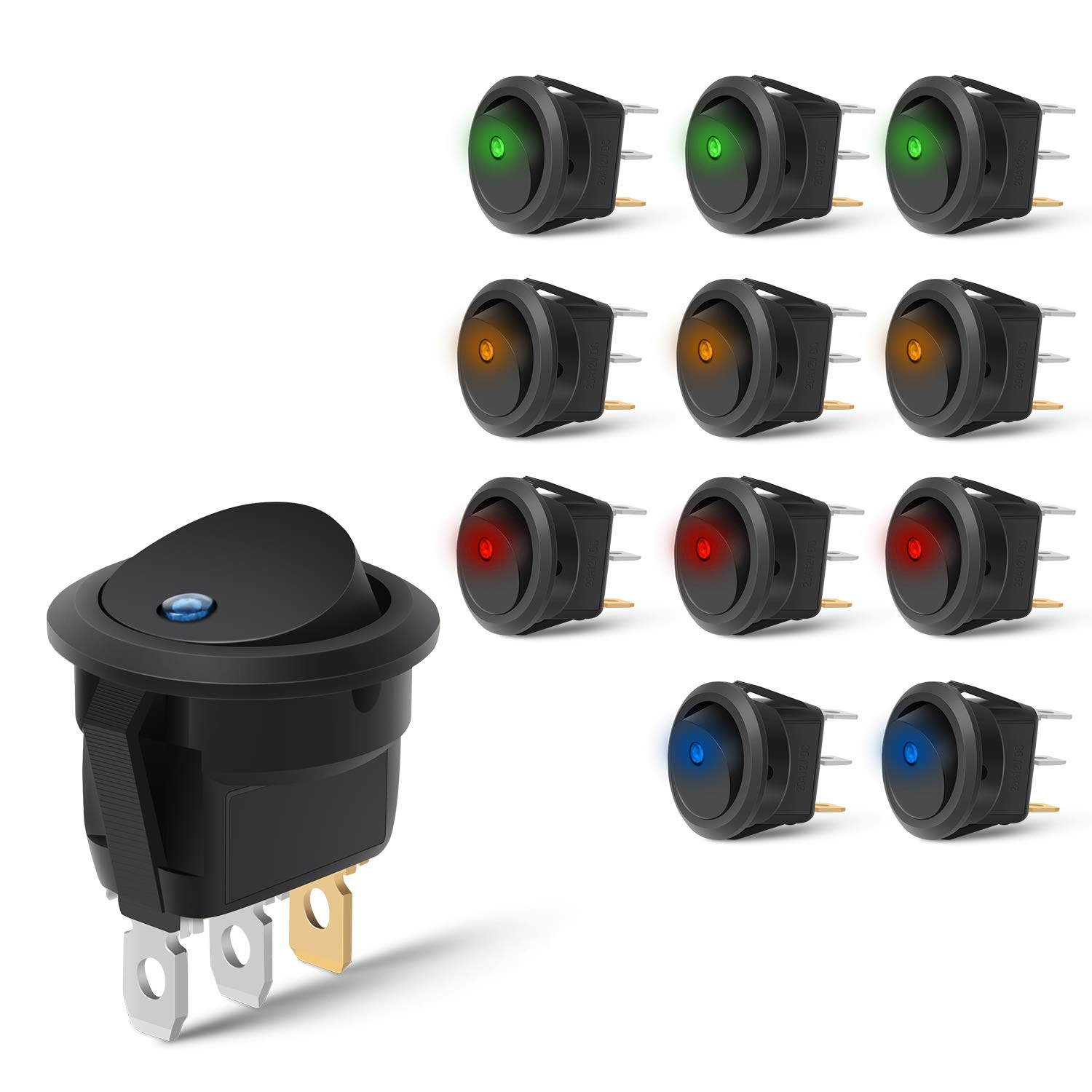

O Nilight 5PCS Waterproof Round Rocker Switch é a solução ideal para quem busca um controle eficiente e seguro para equipamentos elétricos em ambientes automotivos e marítimos. Com um design robusto e funcional, este interruptor de botão de pressão ON/OFF possui uma luz indicadora azul, facilitando a visualização do estado do dispositivo. O modelo é projetado com um sistema de 3 pinos (SPST – Single Pole Single Throw), com a marcação “O I” no botão, permitindo uma operação intuitiva. Com uma classificação de 10A a 125V AC e 20A a 12V DC, este interruptor é capaz de suportar até 500.000 ciclos de uso, garantindo durabilidade e resistência à corrosão.
A segurança é uma prioridade com o Nilight, que utiliza contatos de prata com revestimento de cobre, proporcionando excelente condutividade elétrica. O invólucro é feito de materiais de alta qualidade e é resistente ao fogo, assegurando um uso seguro em diversas aplicações. Com classificação IP65, o interruptor é à prova d’água, protegido contra poeira e jatos de água de baixa pressão, sendo totalmente selado para evitar a entrada de água.
A instalação do Rocker Switch Holder é facilitada pelo design da carcaça redonda, que vem com uma porca, permitindo uma montagem simples e rápida. O diâmetro do furo de montagem do painel é de 29mm, e o produto inclui 5 conjuntos de fios, tornando a conexão do interruptor aos dispositivos ainda mais conveniente.
Este interruptor é amplamente aplicável, podendo ser utilizado para controlar equipamentos elétricos adicionais tanto dentro quanto fora do carro, em ambientes AC ou DC. É ideal para LEDs e circuitos em carros, RVs, barcos, caminhões, residências, máquinas de café, equipamentos industriais e médicos. Também pode ser utilizado em dispensadores de água, máquinas de corrida, eletromóveis e outras modificações em eletrodomésticos.
Pacote Inclui: 5 x Interruptores de rocker redondos, 10 x Fios vermelhos, 5 x Fios pretos, 1 x Manual do usuário.
### Instruções de Uso:
Para utilizar o Nilight 5PCS Waterproof Round Rocker Switch, siga os passos abaixo:
1. Preparação da Instalação: Certifique-se de que a fonte de energia está desligada antes de iniciar a instalação.
2. Furação do Painel: Faça um furo de 29mm no painel onde o interruptor será instalado.
3. Conexão dos Fios: Utilize os fios incluídos para conectar o interruptor ao dispositivo desejado. Os fios vermelhos são geralmente utilizados para a conexão positiva, enquanto os fios pretos são para a conexão negativa.
4. Fixação do Interruptor: Insira o interruptor no furo e fixe-o com a porca fornecida.
5. Teste do Interruptor: Após a instalação, ligue a fonte de energia e teste o interruptor para garantir que está funcionando corretamente.
### Características do Produto
– Tipo de Interruptor: SPST (Single Pole Single Throw)
– Classificação: 10A 125V AC / 20A 12V DC
– Ciclos de Vida: Até 500.000 ciclos
– Material: Contatos de prata com revestimento de cobre, invólucro resistente ao fogo
– Classificação de Proteção: IP65 (à prova d’água e poeira)
– Diâmetro do Furo de Montagem: 29mm
– Conectividade: Inclui 5 conjuntos de fios (10 vermelhos e 5 pretos)
– Aplicações: Carros, RVs, barcos, caminhões, equipamentos industriais e médicos
### Perguntas Frequentes (FAQ)
Pergunta: O interruptor é realmente à prova d’água?
Resposta: Sim, o Nilight 5PCS Waterproof Round Rocker Switch possui classificação IP65, o que significa que é protegido contra poeira e jatos de água de baixa pressão.
Pergunta: Qual é a vida útil do interruptor?
Resposta: O interruptor pode suportar até 500.000 ciclos de uso, garantindo uma longa durabilidade.
Pergunta: Posso usar este interruptor em ambientes AC e DC?
Resposta: Sim, o interruptor é projetado para funcionar em ambos os ambientes, sendo ideal para uma variedade de aplicações.
Pergunta: O que vem na embalagem?
Resposta: A embalagem inclui 5 interruptores de rocker redondos, 10 fios vermelhos, 5 fios pretos e um manual do usuário.
Pergunta: É fácil de instalar?
Resposta: Sim, a instalação é simples e rápida, com um design que facilita a montagem e a conexão dos fios.
Michael –
Awesome switches, well worth the money.
bullit-hed james –
It didn’t work for me.
True Rating –
I think I’ve used one of these. Well worth the price. And they ride around in my truck just in case.
big daddy –
The ease of instalation and the price is great. Thanks for the great product.
Anonymous –
Bench tested all 12 and all switches and their LEDs work. Contact pins are 3/16” spades. Gold is ground(-12V), and I’m not sure if the other two actually matter, it works either way. Having opened it up, i can tell you the center pin is (always) connected to the internal LED’s positive side and the internal LED’s negative side is connected/disconnected to/from the ground pin when switch is turned on/off. Whereas pin 3 is connected to nothing when the switch is off and then connects to center pin when switch is on.
The bezel is pretty narrow so the mounting hole needs to be accurately sized. Switch diameter for mounting hole is .778” and the outside bezel diameter is .905”.
The LEDs are backwards IMO, but the caps can be switched around, though the LED bleeds through between the cap and the housing and is more noticeable when reversed. To switch the cap around: hold with cap facing up because there are a couple parts inside that come loose, pry the cap off at swivel pins with small screwdriver, make sure internal parts stay in place (rocker contact plate down in housing and a spring loaded contact pin in rocker head), remove cap from the rocker head, reverse it, reassemble ensuring those loose parts are set properly.
Have not actually installed yet, but they seem like good switches. Annoying that the LED is backwards.
Muhammad Aman –
buen producto
Anthony Corveddu –
I mounted this switch to the inside of a hatch in my duck boat. Installation was a breeze. One of the most impressive features is its weather resistance. I appreciate how it stands strong against moisture and unexpected splashes, which is a common occurrence when you’re dealing with wet gear and equipment. It still operates flawlessly even after a few unfortunate drenching episodes. The LED indicator light is bright and ensures you know where the switch is. A handy feature when you’re loading up the boat before dawn.
Michael –
These switches are EXCELLENT! They are constructed with high-strength plastics and mechanically they are VERY solid. I don’t see how they could wear out even if used hundreds of times a day for decades.
There are three connectors on the back that are mounted solid – basically an extension of the whole switch. Nothing loose back there at all. One of the connectors is gold-ish in color and must be connected to ground so that the LED lights up when the switch is turned on.
For those interested in the tolerance specs, I decided to sacrifice one of these to see just how many volts the LED would tolerate and was pleasantly surprised with the results.
First of all, these are rated at 20 amps. HOWEVER, I would NOT run 20 amps through these at 12 volts. That’s 240 watts and if you can imagine the kind of heat you might get from 240 watt light bulb – you wouldn’t get that kind of heat concentrated in this switch, but from the looks of everything, I believe the switch would most definitely get warm if not hot at that kind of amperage. And of course, if the switch needs to sustain 20 amps at 12 volts, then you should be looking at a 25 amp rated switch AT A MINIMUM, so I would say it would be safe to use this switch at 10 amps but not more than 15 – TO BE SAFE!
SO, in my testing, using a bench power supply, the LED starts turning on at around 2.5 volts and starts getting close to max brightness at around 5 volts, though it does get about 15% brighter between 5 and 12 volts and it gets no brighter above 12 volts.
As I continued to increase the voltage, the LED didn’t flinch until I got past 45 volts, and at 50 volts, I fried the current limiting resistor attached to the LED. I had my bench power supply set to max amperage at 5 amps, yet this LED hung in there to where the resistor fried before the LED ever got hot enough to burn out. In the photo, the LED is sticking up but it was folded over, laying on its side next to the resistor. I moved it to get a good photo of the burnt resistor.
I would say that as long as you keep your wattage under 200 watts, you could use this switch at any voltage up to whatever voltage calculated out to be 200 watts (take the voltage times the current to calculate wattage).
After I fried it, I took some pictures so you can see what’s inside these things. Very basic … one LED and one current limiting resistor and a design that is top-notch with a very solid build. These things are NOT waterproof so I would not use them in any application where they might get wet, but they would be perfectly fine in any application where they are only exposed to open air (or in a vacuum I suppose). They have a solid click feel to them and they look very professional.
I haven’t measured around the inside of the ring yet, but if the hole was drilled to the right size and the material you’re mounting them to isn’t too thick, they will push in and click tight against the mounting plane and they will hold that position very well.
My only complaint about the company is that they included an insert with a QR code that said to scan it for a surprise, free gift. When I scanned it, it took me to the warranty registration page on their website. Once I registered it (and provided a screenshot of the order details along with a photo of the UPC code on the package, plus my name, email address, and phone number), I was not offered any gift at all.
I certainly understand that companies want feedback from their customers and warranty registration is a good thing for a manufacturer, but manipulating people into registering their product by promising them something and not delivering on that promise is just bad ethics. Don’t offer a gift if you don’t intend on giving one and let people decide for themselves if they want to register the product warranty or not without manipulating them with a lie in order to get them to do it.
Overall – for this price, these are amazing switches. I highly recommend them and will purchase these again if I ever need any.
R –
You can use the toggle only or with surround. I had enough space on my Ryobi snow shovel to use the surround. I know. I bypassed the safety. Well what was a danger was trying to work with the crummy safety trigger.. The click, click, click and still nothing is replaced with a on-off that works as it should.
I removed my trigger and safety slide then wrapped the handle with a 1 inch wide long length of stretch velcro. It provides no slip handle control while my tool is TURNED ON and in use.
Craig Langkau –
Nilight Round Rocker Switches:
These worked well for my project and they seem to be well built.
The switch and nut threads mesh properly and tightens switch in place securely.
This is the first time I have used them so I can’t testify to there longevity.
