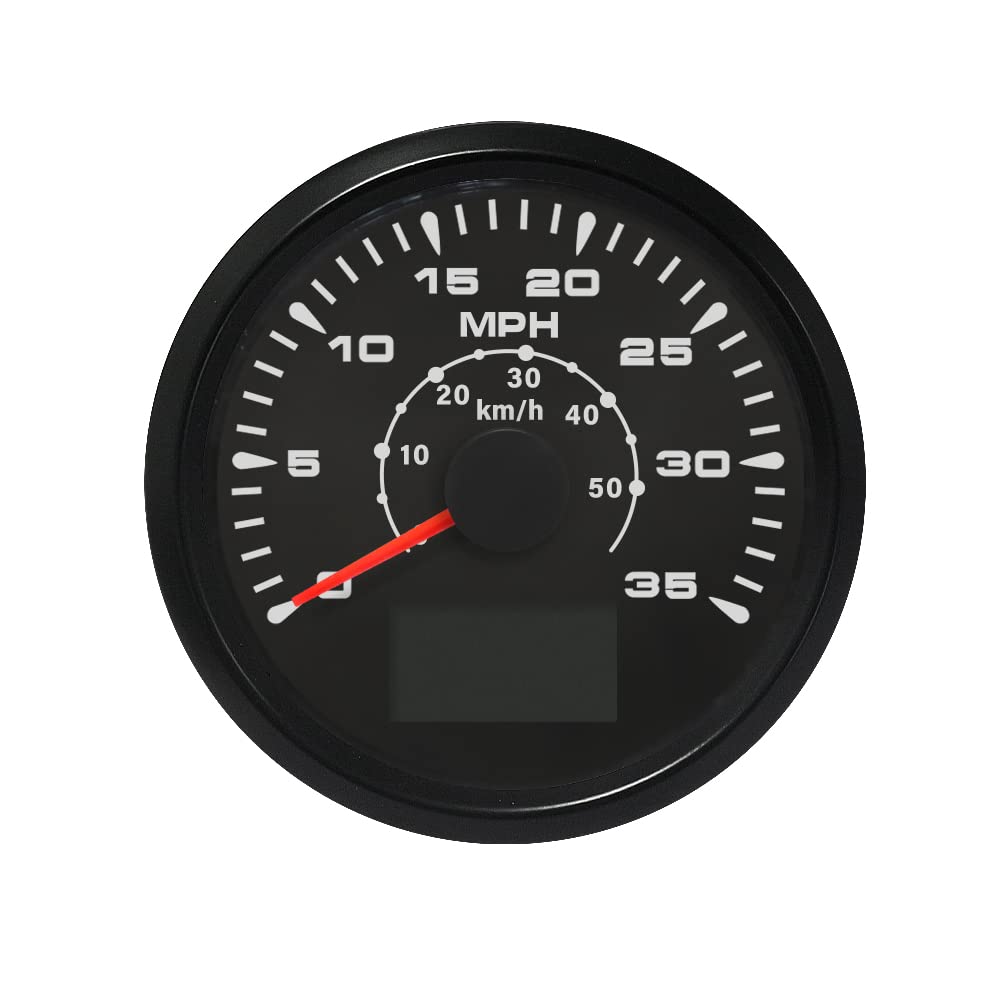

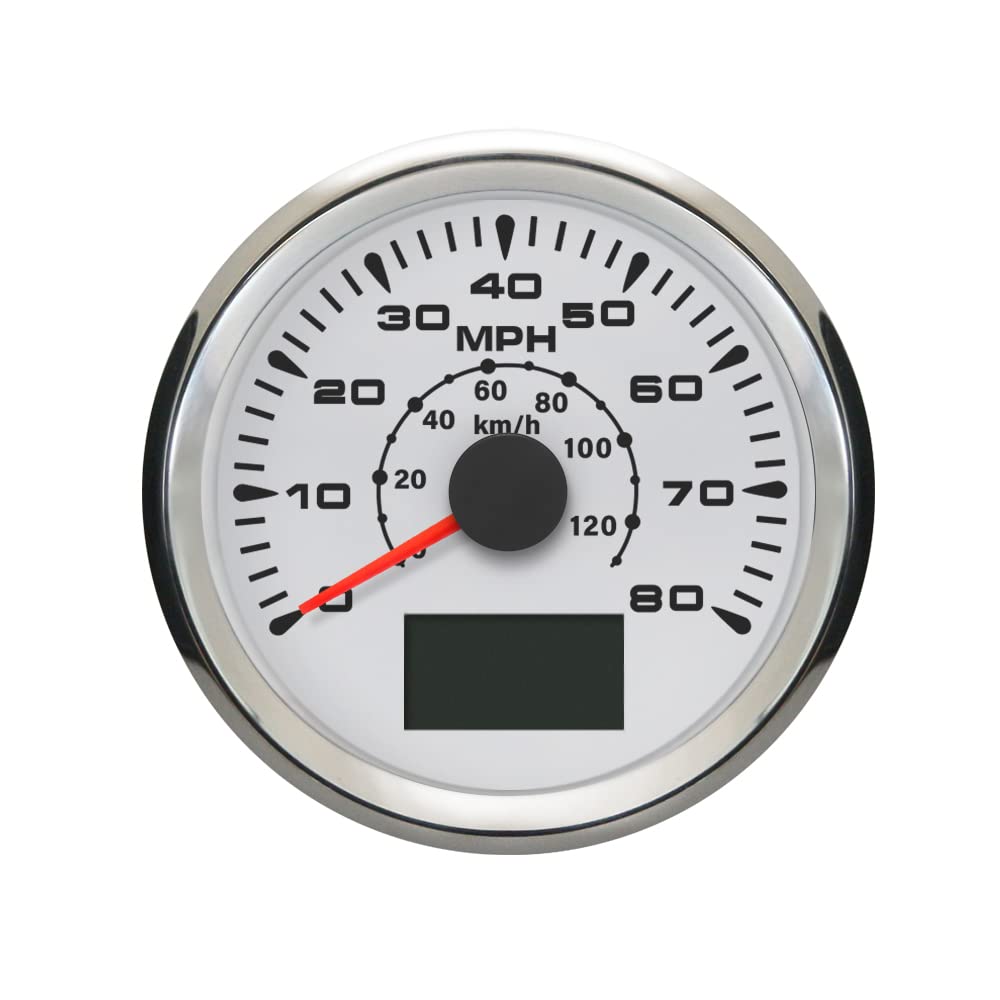

Descrição do Produto: ELING 3 3/8″ Waterproof Marine Auto GPS Speedometer Odometer Kit
O ELING 3 3/8″ Waterproof Marine Auto GPS Speedometer Odometer Kit é a solução ideal para quem busca precisão e confiabilidade em medições de velocidade e distância em ambientes marinhos. Com um design robusto e funcional, este kit é projetado para suportar as condições mais adversas, garantindo que você tenha sempre as informações necessárias à mão, seja em um barco, jet ski ou qualquer outra embarcação.

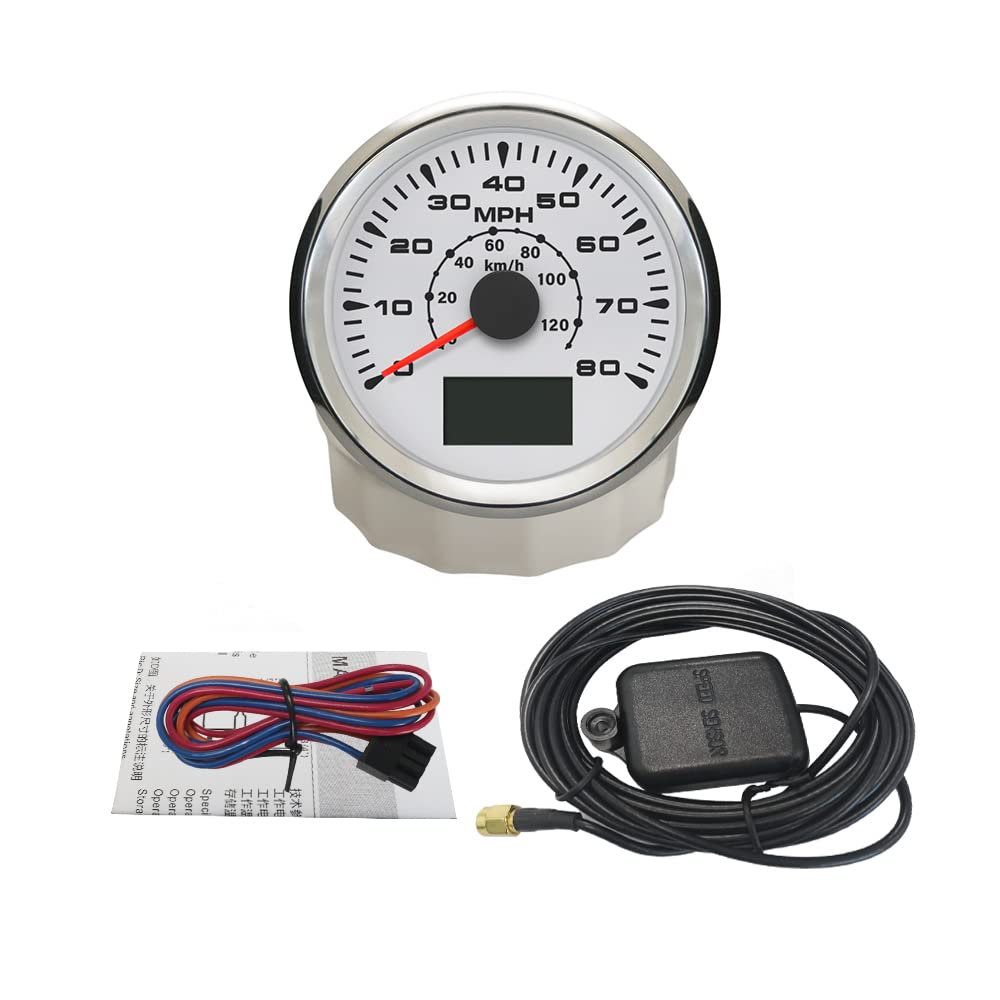

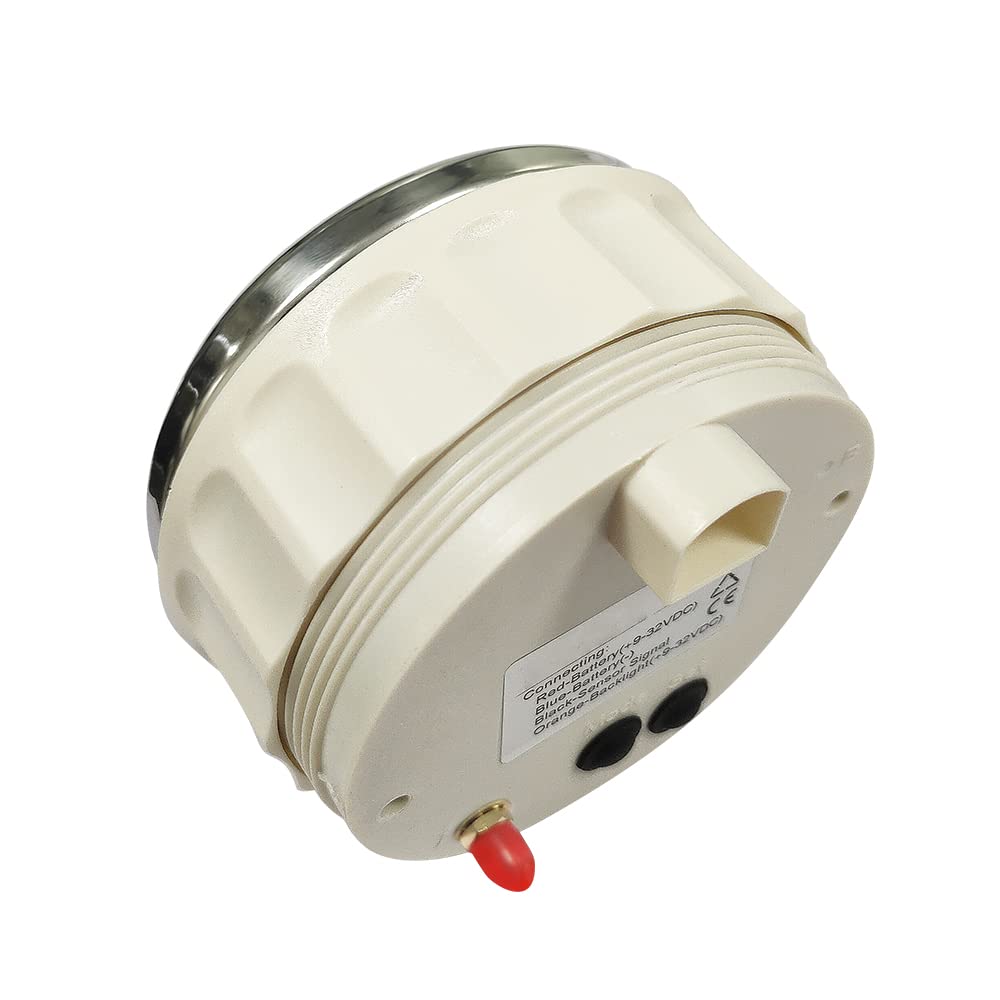

Para a instalação, é necessário cortar um buraco de 85mm (3 3/8″) no painel e garantir um espaço de 70mm (2 3/4”) atrás do painel para acomodar o medidor. Após a instalação, utilize uma porca M4 e um suporte em C para fixar o medidor de forma segura. A antena GPS deve ser posicionada de forma plana, com o lado preto voltado para cima, preferencialmente do lado de fora ou na parte interna do para-brisa, garantindo uma visão clara do céu para captar o sinal dos satélites. Conecte o cabo da antena na entrada localizada na parte traseira do medidor, sem cortar o cabo.

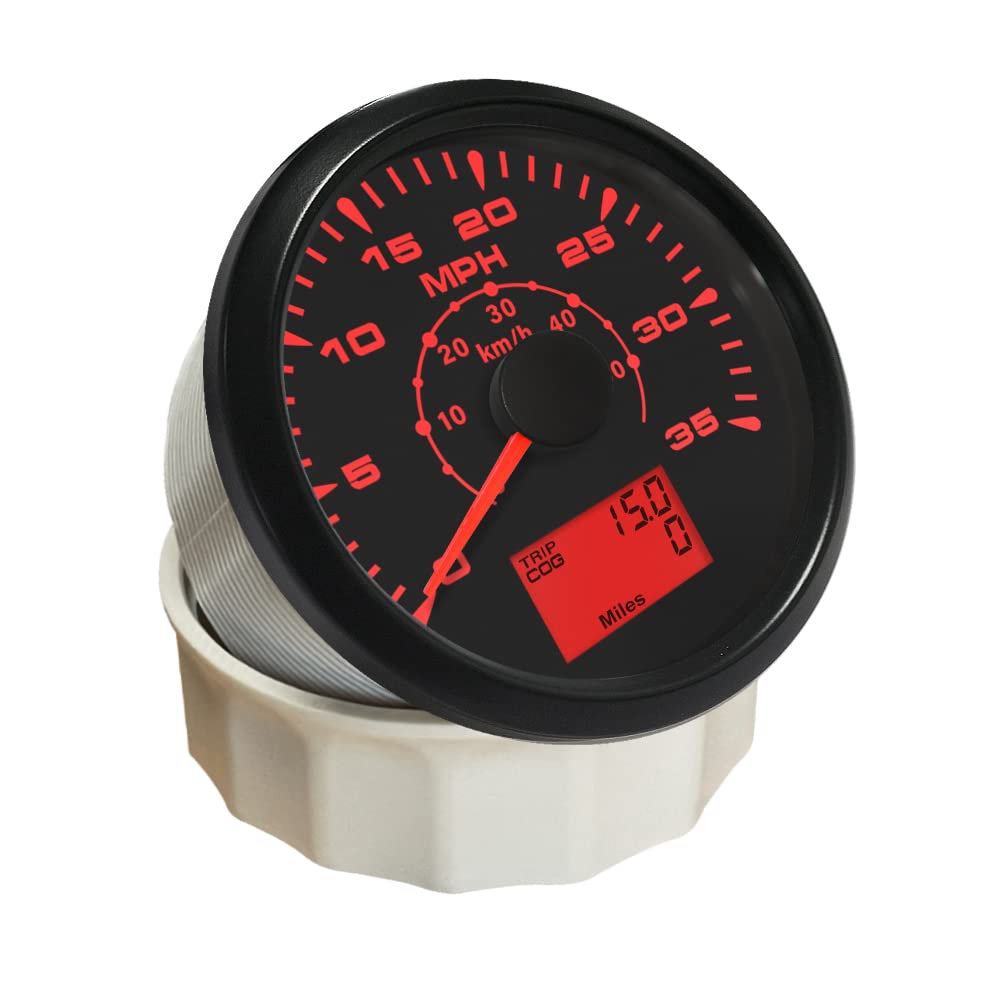

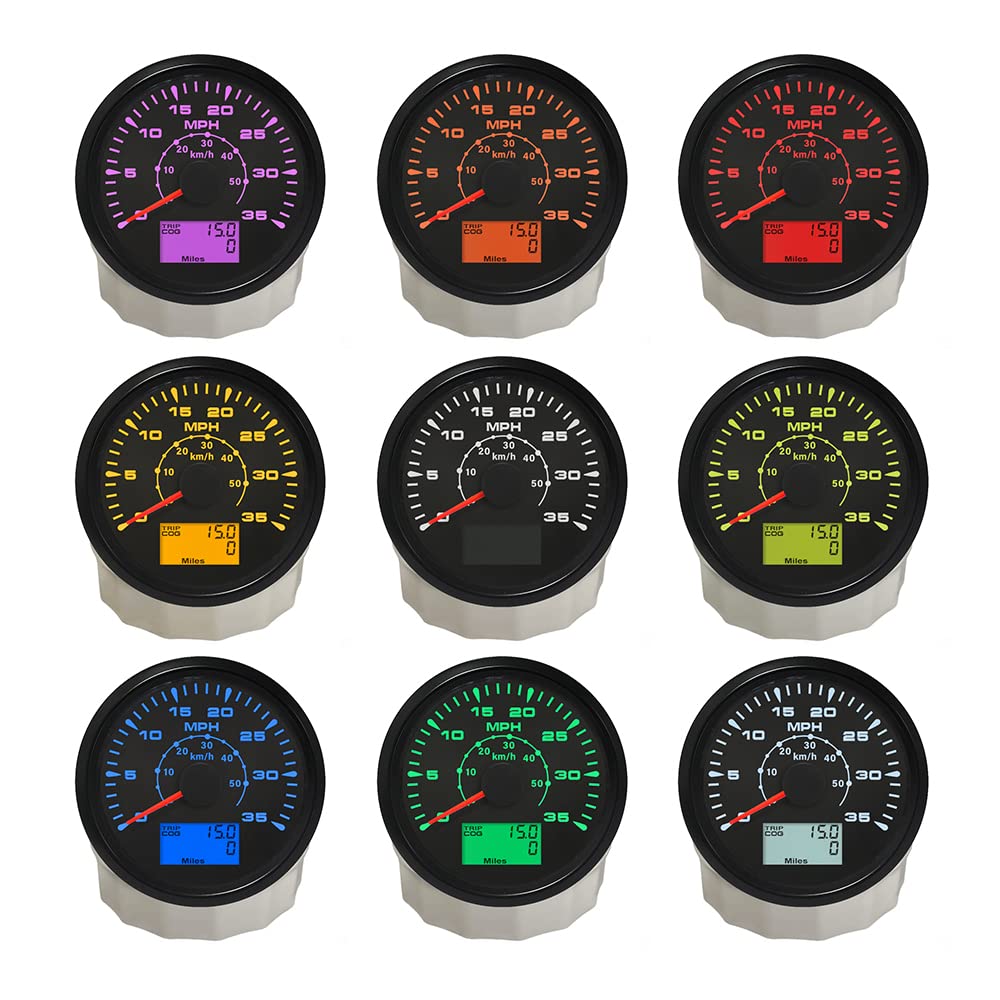

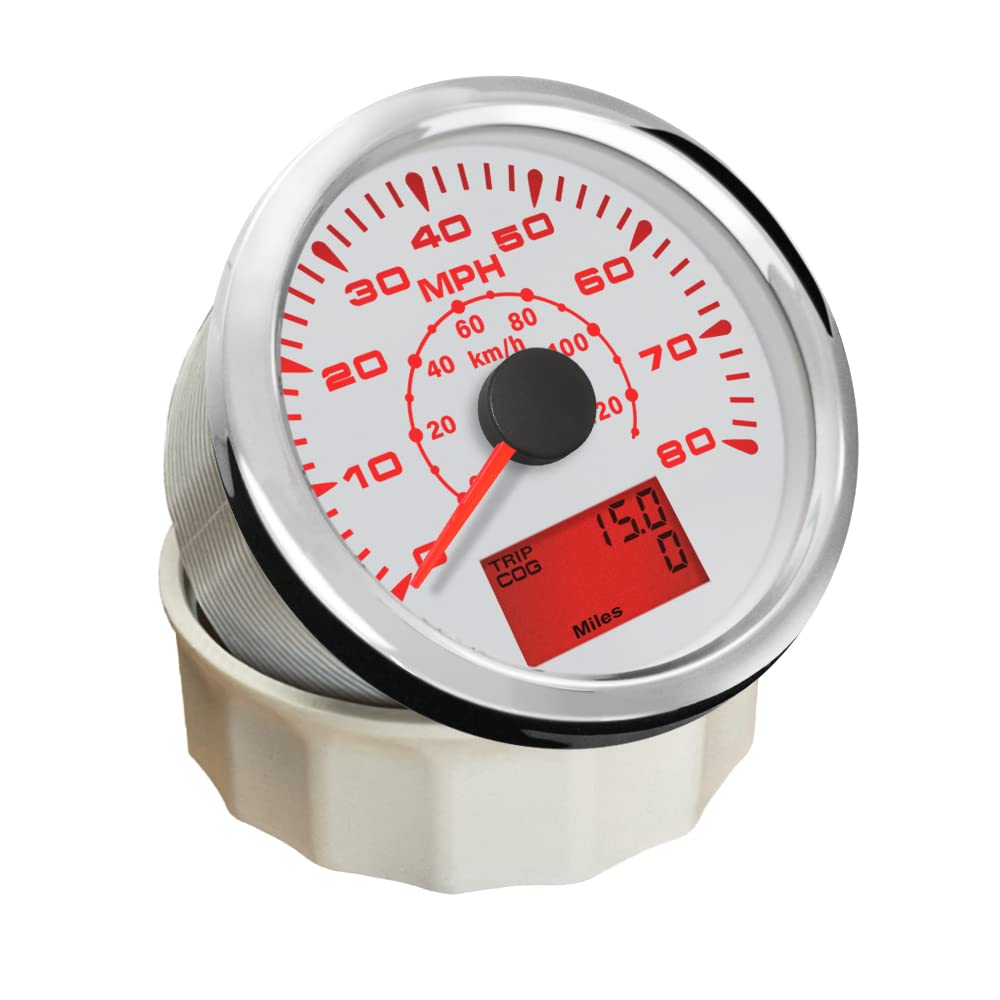

O medidor exibe a velocidade atual, TRIP/COG (escolha uma opção) e ODO (que não pode ser redefinido). Caso você deseje uma faceplate de outra cor, busque pelos códigos ASIN B07KNR2ZFT ou B07KNR7NR7. O painel conta com retroiluminação em várias cores: vermelho, verde, azul, branco, amarelo, laranja, roxo e verde claro, ou pode ser configurado para modo automático.
Com uma tensão de trabalho de 9-32VDC (12VDC/24VDC), este medidor é 100% à prova d’água e possui proteção contra embaçamento, garantindo visibilidade em todas as condições.
- Instruções de Uso:
Para utilizar o ELING GPS Speedometer, inicie a instalação conforme as instruções acima. Após a instalação, ligue a alimentação elétrica e aguarde alguns instantes para que o medidor se conecte ao sinal GPS. A velocidade atual será exibida automaticamente. Para alternar entre TRIP e COG, utilize o botão de seleção no painel. O odômetro (ODO) mostrará a distância total percorrida e não pode ser redefinido. Para personalizar a cor da retroiluminação, acesse as configurações do medidor e escolha a cor desejada.
Características do Produto:
– Diâmetro do Medidor: 85mm (3 3/8″)
– Tensão de Operação: 9-32VDC (compatível com 12VDC e 24VDC)
– Funções: Velocidade atual, TRIP/COG, ODO
– Proteção: 100% à prova d’água e anti-fogging
– Retroiluminação: Várias opções de cores (vermelho, verde, azul, branco, amarelo, laranja, roxo, verde claro) ou modo automático
– Instalação: Requer corte de 85mm no painel e espaço de 70mm atrás
– Conexão da Antena: Cabo deve ser conectado sem cortes
Perguntas Frequentes (FAQ):
Pergunta: O medidor é realmente à prova d’água?
Resposta: Sim, o ELING GPS Speedometer é 100% à prova d’água, projetado para suportar condições marinhas adversas.
Pergunta: Como posso alterar a cor da retroiluminação?
Resposta: Você pode alterar a cor da retroiluminação acessando as configurações do medidor e selecionando a cor desejada.
Pergunta: O odômetro pode ser redefinido?
Resposta: Não, o odômetro (ODO) é projetado para mostrar a distância total percorrida e não pode ser redefinido.
Pergunta: Qual é a tensão de operação do medidor?
Resposta: O medidor opera em uma faixa de tensão de 9-32VDC, sendo compatível com sistemas de 12VDC e 24VDC.
Pergunta: Onde devo instalar a antena GPS?
Resposta: A antena GPS deve ser instalada em uma posição plana, com o lado preto voltado para cima, preferencialmente do lado de fora ou na parte interna do para-brisa, para garantir uma boa recepção do sinal.
![Adaptador Veicular SUPERONE 180W com 2 Soquetes e Carregador USB C PD 20W - Divisor de Isqueiro para GPS e Dash Cam - [Atualização 2025]](https://m.media-amazon.com/images/I/61oiVlv1qvL._SL1500_.jpg)
Big spender –
Very impressed with this unit. Replaced the factory unit on our boat with this one. Fit perfectly and gives a great, accurate reading.
Martin Usher –
I purchased this for an old motorcycle that was originally equipped with a Smith’s “Chronometric” type. These older speedometers are effectively unobtainable (and never worked that reliably even back in the day) so I’ve been looking around for a replacement that was the right size and general appearance. I’ve been unsuccessful up to now — cable driven units rarely have a cable and gear ratio that fits, electric ones require magnets on the wheel, there really wasn’t anything out there. Then this turned up. Its the right size and the right shape for the machine and — to my surprise — it works reliably with a stable readout and no problems with lost GPS signal. I’ve only given it four stars because you have to improvise a mount (although an ABS pipe cap from the local hardware store does the job well its not perfect) and its geared to a negative earth system, leaving potential problems with shorting, but nothing that can’t be overcome by someone who owns an old machine. The meter comes with an external antenna that’s attached by a lot of thin coaxial cable, abut 12 feet (4 meters), so its easy to route the cable away from ignition systems and other potential interference sources. (I placed my antenna on the tail lamp mount where it always has a clear view of the sky).
(PS — One minor improvement would be to the LCD display. This shows things like trip and odometer but this being a GPS unit it should be able to optionally display latitude and longtitude.)
Amazon Customer –
Replaced junk water pressure based speedo with this. After using 30 miles I can say this is one of the best things I have ever bought for my boat. Boat top speed is 30 so I can see the exact speed. It works great, gps connects in seconds. The trip function and total miles is not something I thought I would use but love it now that I have it. I can calculate fuel burn and see exact distance on water between points. This is just a great device, well built and looks great installed. Well worth the money.
WRM Oz –
Purchased for a bicycle. Professionally installed. Worked for a 15 minute ride, then blinked off and back on and wouldn’t keep speed. Worked less time each trip and finally just say c45094. Zero support documents. When you buy cheap stuff usually I don’t expect the world but it’s a waste if there is any vibration.
Amazon Customer –
I purchased this GPS Speedometer to install in my old 1962 Chevy C-10 classic truck. I have a newer conversion transmission installed with no speedometer gears and I really wanted a working speedometer, especially with an odometer and trip meter to monitor oil changes and gas mileage. This little inexpensive GPS driven speedometer is perfect! Installation was simple and painless, it has a numerous back lighting color options and best of all, working odometer with two trip meters! The odometer stores mileage even when battery gets disconnected, as does one of the two trip meters…perfect. If you look at my pics you can see the simple little receiver that I just laid up in corner of dash with some double sided tape, its small enough to hardly even notice it and reception is great.
Terry Bartak –
The other cheaply built one I bought failed within a few miles. Amazon service was fantastic. I chose this Eling because I liked the traditional look and simple, direct hookup. Wired it hot into my headlight switch on my 1951 IHC bus and hooked the backlight into the parklight lug on the switch. Ground to a screw under the dash. The pickup lead is like a mini coax cable that firmly threads to the speedo unit. Very simple for me to install as I just used a dryer vent sized hose clamp to secure it to my steering column. I like the way it’s built. There are 2 buttons on the back for setting the color of light and the miles function. I have it set to trip and odometer. The trip gives your distance in miles and 10ths and odo rounded miles. I completely cut power to it by switching off my master cutoff switch and it still kept the trip and miles stored and they appeared when power was restored. Good! To reset the trip meter you press the button on the BACK of the speedo. Keep that in mind. This is well made and works well. Odo and speed are accurate. You could use this ruggedly built unit on just about anything. So far I’ve only gone exactly 9.3 miles as a test but I could not be more satisfied. This is the one you want for old hot rods or bikes or whatever. It seems tough and well sealed against moisture as well. I’m going to get another one soon for my Harley 72 XLCH.
Rick Y. –
I purchased this GPS speedometer for my new Bass Tracker. Works as I was expecting. Easy to install and setup. Looks great in my boat’s dashboard.
Owen Bird –
Fit perfect, was easy to install and works like a charm.
Aaron –
I installed this on a 2021 Polaris 170 RZR. Works great!. I did not connect the power lead to the battery as instructed, I was concerned with battery drain. I connected the red power and orange power wires together, then tied into the brown power wire from the ignition. It will still calculate accumulated mileage, it just resets the trip mileage automatically when you turn the key on and off. The speedo works flawlessly, seems to be waterproof and is very accurate. You will need an 85 MM whole saw to install this.
Toolman424 –
What can I say? It works awesomely. I wired it to a cigarette plug and plug it into a cigarette outlet in my truck. It works like a charm. I just wired the two positive leads together to the positive from the cigarette plug and the black to the black. Super nice.
Love that you can change the light color. I prefer to keep it on red to preserve my night vision. It’s really good and takes anywhere from 10 seconds to a minute to connect to GPS. I have the GPS antenna inside my glove box and it still works. I’m sure there are lots of places to put it. I put it far away from me so I maybe get less radio radiation (if that matters).
It’s amazing, get it if you need it. It works, and you won’t be disappointed.
I mounted it to my steering column with this: https://smile.amazon.com/gp/product/B00062YWNI/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
plus a hose clamp. I couldn’t be happier with it.
