### Descrição do Produto

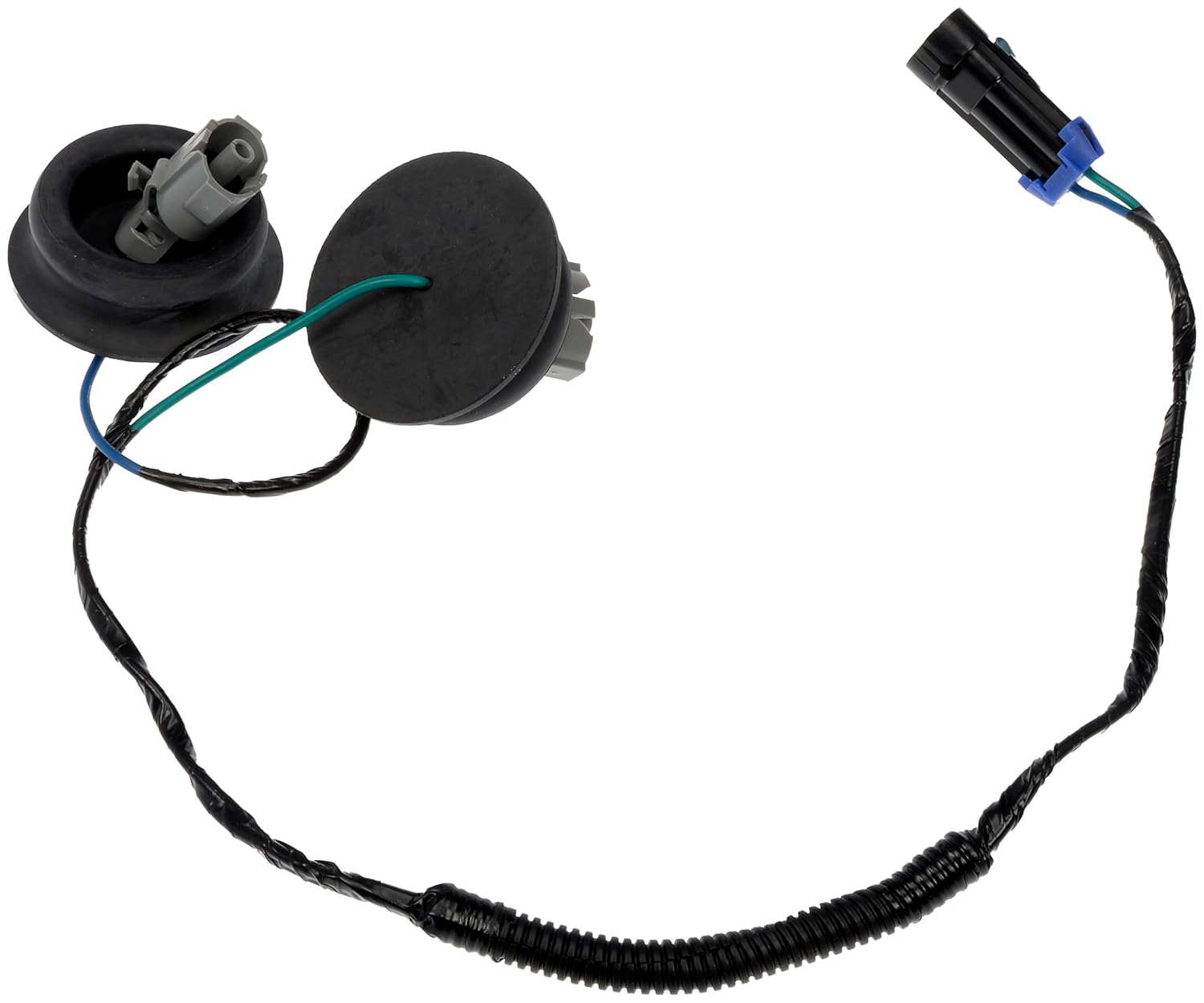

O conector do sensor de detonação Dorman 917-033 é a escolha perfeita para motoristas que buscam um componente de substituição confiável e de alta qualidade para o conector original em veículos selecionados. Este conector foi meticulosamente projetado para ser uma substituição direta, garantindo um encaixe perfeito e funcionamento idêntico ao do componente original. Com o tempo, é comum que conectores de sensores sofram danos devido à corrosão e desgaste, o que pode comprometer a eficiência do sistema de ignição. O Dorman 917-033 é a solução ideal para restaurar essa funcionalidade, permitindo que o motor opere de maneira eficiente e sem falhas.
Fabricado com materiais de alta qualidade, o Dorman 917-033 oferece uma construção robusta que assegura um desempenho confiável e uma longa vida útil. A Dorman, com mais de um século de experiência na indústria automotiva, garante que cada componente atenda aos mais altos padrões de qualidade. Para garantir que este conector se encaixe perfeitamente no seu veículo, basta inserir a marca, modelo e nível de acabamento na nossa ferramenta de compatibilidade.
### Instruções de Uso:
Para instalar o conector do sensor de detonação Dorman 917-033, siga os passos abaixo:
1. Desconectar a Bateria: Antes de iniciar a instalação, desconecte a bateria do veículo para evitar qualquer curto-circuito.
2. Localizar o Sensor de Detonação: Identifique a localização do sensor de detonação no motor, que geralmente está próximo ao bloco do motor.
3. Remover o Conector Antigo: Desconecte o conector antigo do sensor, verificando se há sinais de corrosão ou danos.
4. Conectar o Novo Conector: Conecte o Dorman 917-033 ao sensor de detonação, certificando-se de que esteja bem encaixado.
5. Reconectar a Bateria: Após a instalação, reconecte a bateria e ligue o motor para verificar se o sensor está funcionando corretamente.
### Características do Produto
– Substituição Direta: Projetado para se encaixar e funcionar como o conector original em aplicações específicas, eliminando a necessidade de adaptações.
– Restauração de Funcionalidade: Substitui conectores danificados por corrosão, garantindo o funcionamento adequado do sistema de ignição e evitando falhas no motor.
– Construção Durável: Fabricado com materiais de alta qualidade que garantem um desempenho confiável e uma longa vida útil, mesmo em condições adversas.
– Qualidade Confiável: Suportado por uma equipe de especialistas com mais de 100 anos de experiência na indústria automotiva, assegurando que cada componente atenda aos padrões mais rigorosos.
– Compatibilidade Garantida: Utilize a ferramenta de compatibilidade para assegurar que o conector se encaixa no seu veículo específico, evitando compras inadequadas.
### Perguntas Frequentes (FAQ)
Pergunta: O Dorman 917-033 é compatível com meu veículo?
Resposta: Para garantir a compatibilidade, insira a marca, modelo e nível de acabamento do seu veículo na ferramenta de compatibilidade disponível no site.
Pergunta: Como posso saber se meu conector de sensor de detonação está danificado?
Resposta: Sinais de danos incluem corrosão visível, desconexão frequente ou falhas no desempenho do motor. Se notar algum desses sintomas, é recomendável substituir o conector.
Pergunta: A instalação do Dorman 917-033 requer ferramentas especiais?
Resposta: Não, a instalação pode ser realizada com ferramentas básicas, como chaves de fenda e alicates. Certifique-se de seguir as instruções de uso para uma instalação correta.
Pergunta: Qual é a garantia do produto?
Resposta: O Dorman 917-033 é respaldado pela qualidade Dorman, que oferece garantia contra defeitos de fabricação. Consulte o manual do produto para mais detalhes.
Pergunta: Posso instalar o conector eu mesmo ou devo levar a um mecânico?
Resposta: A instalação é simples e pode ser feita por você mesmo, desde que siga as instruções corretamente. No entanto, se não se sentir confortável, é sempre bom consultar um mecânico.
Tycho Aussie –
It turns out that changing the knock sensor under the intake manifold of the LS motor takes just two hours. It was not nearly as painful as I thought it would be, given that I am an old smallblock chevy guy. I totally thought I would spend a day changing it out, and use a couple of tubes of RTV. But no, the whole system was almost painless and hardly a drop of antifreeze was spilled in the process. THis harness was high quality and wiring lengths were just right.
curtis –
Excellent value. Installed in my 2004 Sierra 2500 4 X 4 6.0 V8 Denali Crew Cab. I had to replace the knock sensors, and I recommend replacing the harness as the same time. I also recommend you do both sensors even if one is gone.
Tips:
Recommend you have RTK Sealant on hand to seal around the rubber. This is a common repair and reportedly GM recommends this when replacing the knock sensors. Hopefully your truck will only require one replacement, and the sealant will help ensure that.
Have a vacuum cleaner to remove the crap you will find under the intake. It is hard to brush, and you don’t want it falling into any of the ports.
Also recommend throttle body cleaner. For my truck, you have to remove the intake. I recommend you clean the throttle body at the same time since you will have easy access to take the throttle body to the bench and spray out both sides. Throttle bodies uses specific spray. Don’t use carb cleaner or other stuff.
SEAN –
Worked perfectly for the newer style knock sensors I had to put in my 98 corvette
Honest Reviewer –
If you are performing the knock sensor job then a new harness is a necessity. This is the exact reason why you are performing the job in the first place. The old one shrinks with the heat and allows water to enter the knock sensor cavity. This in turn corrodes the knock sensor and damages it. The connectors on the old one are also prone to breaking upon removal since they turn brittle with age. This harness arrived well packaged in a box with the harness bagged inside. The new boots had a nice tight fit when replacing the old one. All the connectors snapped in snugly without a problem. Upon starting my 5.3 silverado the harness performed its job as intended and did not cause any problems. It is an exact replica of the original one so you should have no problems with fitment. I opted to seal the new boots entirely with RTV even though the service bulletin only calls to create a dam in the front half of the boot.
Some things to note if you are performing the knock sensor job on a GM:
Make sure you have an open weekend to perform this job, It will take upwards of 6-8 hours.
As noted below, since the manifold will be off, now will be an excellent time to replace optional parts. You might also want to do additional maintenance such as cleaning the IAC, MAF and throttle body.
Parts you will need:
2 Knock sensors (usually only the rear gets damaged but since this is a large job you might as well swap them both)
1 Knock sensor harness (The old one will be useless. The boot wont seal tight and the connectors will be brittle and likely break)
1 Intake manifold gasket (This is a given. You do not want to do this and have a vacuum leak after putting it all back together)
1 Throttle body to intake manifold gasket (You will problably unmount the throttle body for easier removal and cleaning)
1 RTV tube (High temp is preferred. This is used to create a dam and keep water from entering the knock sensor and corroding it)
Miscellaneous Optional:
1 Bottle of Throttle Body Cleaner (While the whole manifold is off you may take this time to clean the throttle body thoroughly.
1 bottle of MAF cleaner (To clean the Mass Air Flow sensor and Idle Air Control Valve)
Some Shop Towels: (You will be doing alot of cleaning of parts caked with grease/dirt/grime)
Shop Vac:
(No matter how careful you are chances are leaves or debris will fall into the cavities of the valves/knock sensor while removing the manifold. A shop vac makes quick haste of cleaning all this debris)
Other parts to consider replacing while you have the manifold off:
Valve cover gaskets w/grommets
(This is a perfect time to replace the valve cover gaskets if you notice any small oil leaks)
Heater Hose Quick Connectors:
(These things are also notorious for breaking in alot of GM trucks near the firewall. If you have never replaced them, now would be a good time to replace them since you will have easy access to them)
Note: I did not include any part #’s as they will vary per vehicle application.
Honest Reviewer –
This is not a complicated device. The connectors clipped firmly onto my OEM sensors. The rubber seals fit very firmly into the valley cover openings, unlike my OEM seals that spun freely in the hole. The wires were of the correct length and had the proper clip on the harness connector that allowed it to clip onto the manifold in the OEM location. It was a flawless victory. (2003 GMC Yukon, 5.3L LM7 V8)
Ryan Adams –
Check engine light came on one day towing up a steep hill. After scanning the ecm I got the knock sensor and misfire codes. It’s a real common problem on Chevy V8s. It’s an easy fix just a bunch of stuff in the way that has to be moved. Because of all of the things that have to be moved and the time that it takes toove them I personally change both sensors and the wire harness while I’m at it. This harness in my opinion is better than the factory harness. The plugs seal tighter and the wire feels better than factory.
DEANNA JOHNSON –
Excellent quality would definitely recommend this item and seller.
TheCountofMonteCristo –
Replaced intake gaskets & knock sensors on my 2003 Tahoe 5.3L and decided on using the Dorman harness instead of reusing the factory harness (even though it looked fine). I was impressed with the quality of this harness and the boots were very snug fitting…which is what you want to help prevent water intrusion into the sensor well. Normally, I would recommend using OEM products, but for a simple harness, this fits the bill. Dorman has been around for a while and I have had satisfactory results with selective use of their products. I previously examined this same harness at a local parts store and wound up ordering off of Amazon because of better pricing.
zofoman –
One if the sensor worked perfect, while the other one brought back the code
joel Bradford –
good quality with nice tight fit. they fit so tight that I almost feel you don’t need to do the silicone damn that is recommended.
