10102 21 Wiring 10102

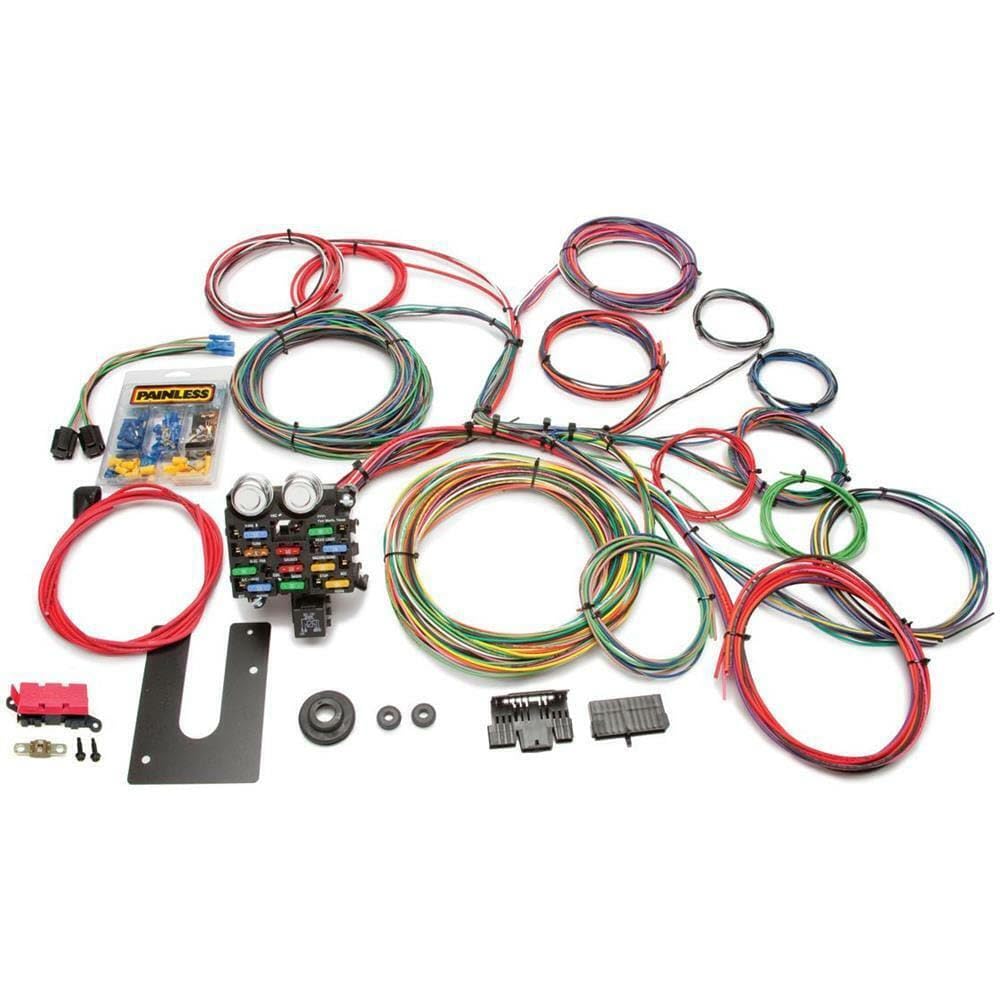

This 21 kit is our most widely used customizable chassis . You’ll find that it’s easily adaptable to almost any vehicle. We offer two versions, one with a preterminated column mounted ignition switch connector -10101 CHEV- and one without -10102 UNIV-. Included with this are the following parts; a engineered fuse block & Painless mounting bracket; turn signal connectors; pre wired plugs for the headlights & dimmer switch; and each wire is printed with the identification as well as using color for easy installation.
Number of : 21 – 12 Fuses w/ Horn Relay and Maxi Fuse
Length:
Fuse Type: Blade
Firewall Passthrough: Grommet
Color Based:
Designations: Printed on wire
Connectors Included -10101 CHEV-: Column Turn Switch and Ignition Switch, Dimmer Switch, Two Headlight Pigtails, 10SI & 12 SI Alternator, HEI and and 20 Extra 56 Series Terminals for use with any 56 Series Connector such as Headlight Switch, Wiper Switch or A/C Switch/Blower Motor.
A/C and Heat
Accessory / Cigarette Lighter
Backup Lights
Brake Lights
Charging
Light
Choke
Flashers
Fan Relay Activation
Fused Source
Headlights
Horn -Relay-
Ignition Coil
Instrument Panel Lighting and Gauges
Park Lights
Radio/Clock -Constant and Switched-
Starting
Tail Lights
Third Brake Light
Turn Signals
Wipers
Including Wires For:
Fuel Gauge
Oil Gauge
Tachometer
Temperature Gauge
Voltmeter
This includes for:
A/C and Heat
Accessory / Cigarette Lighter
Backup Lights
Brake Lights
Charging
Light
Choke
Flashers
Fan Relay Activation
Fused Source
Headlights
Horn -Relay-
Ignition Coil
Instrument Panel Lighting and Gauges
Park Lights
Radio/Clock -Constant and Switched-
Starting
Tail Lights
Third Brake Light
Turn Signals
Wipers
Including Wires For:
Fuel Gauge
Oil Gauge
Tachometer
Temperature Gauge
Voltmeter
